Precision non-ferrous manufacturing · Middle East & GCC
Engineering Bronzes & Copper
PartsMake precision-forms and machines aluminium bronze, phosphor bronze and high-conductivity copper alloys for demanding industrial service. From self-lubricating wear bushings and seawater valve components to busbars for power networks and data centres, we help match alloy, manufacturing route and tolerance to the job.
±0.005 mm
5-axis CNC machining tolerance capability, subject to part geometry, material and inspection plan.
Material-led
Manufacturing routes selected for wear, conductivity, corrosion exposure and component duty.
Traceable
Material certification and inspection records can be prepared to the agreed project requirements.
Alloy selection for service conditions
Three material families. Distinct engineering roles.
The right bronze or copper alloy depends on load, lubrication, conductivity, corrosion exposure and how the component will be made. We review the drawing and operating conditions before confirming a production route.
Wear & seawater duty
Aluminium bronze
A candidate for heavily loaded bushings and marine or seawater-facing valve parts where wear resistance and corrosion performance are priorities.
- 01Self-lubricating bushing and bearing geometries for heavy equipment.
- 02Valve seats, stems and other components exposed to saline service.
- 03Machining from suitable stock or billet, with route confirmed against the part specification.
Spring & precision components
Phosphor bronze
A versatile option for precision components where the design calls for a combination of spring behaviour, wear performance and reliable dimensional control.
- 01Close-tolerance pins, sleeves, bushes and small turned parts.
- 02Swiss machining for small-diameter components and detailed features.
- 03Material condition and finishing considered alongside the final fit.
Power & thermal management
High-conductivity copper
Copper alloy components are produced for electrical and thermal assemblies that need accurate interfaces, clean features and repeatable fit-up.
- 01Busbars, clamps and electrical connection hardware for power infrastructure.
- 02Precision parts for data-centre and liquid-cooling systems.
- 03C11000 copper is among the available materials for suitable applications.
Application-led engineering
Made for the loads and environments of the Gulf.
High ambient temperatures, abrasive dust, heavy operating loads and saline water can expose weaknesses in both material choice and component fit. We help regional MRO teams, system integrators and industrial packagers specify bronze and copper parts around real service conditions.
Heavy equipment & MRO
Custom wear bushings and sleeves for machinery operating under load, where controlled clearance and reliable rotation are essential. Parts can be produced to suit the mating shaft and housing dimensions.
Seawater valves & desalination
Valve seats, stems and related components for high-salinity service. Alloy and manufacturing route are reviewed against the specified fluid, operating conditions and inspection needs.
Power grids & switchgear
Copper busbars and connection components cut and formed for accurate assembly, with options for finishing requirements to be confirmed at quotation stage.
Data-centre infrastructure
Precision copper parts for thermal and electrical systems, supporting close interfaces and repeatable assembly across prototype and production batches.
From stock to inspected component
Control the material route, density and final fit.
A successful bronze or copper component depends on more than the alloy name. We align the manufacturing approach with the geometry, performance requirements and verification plan before production begins.
Review the application
Assess load, speed, lubrication, seawater exposure, electrical duty, mating components and critical drawing dimensions.
Choose a suitable route
Match the specified alloy and stock form to the component. For critical pressure or rotating parts, dense forged billet can be considered where appropriate.
Form precise features
CNC milling, turning, mill-turn and sheet-metal processes support complex profiles, defined fits and production-ready component geometry.
Inspect to the plan
Agree dimensional checks, material traceability and any additional integrity testing against the drawing, service conditions and purchase specification.
| Manufacturing capability | Published capability envelope | Typical component fit |
|---|---|---|
| 5-axis CNC milling | Standard machining tolerance down to ±0.005 mm, subject to part geometry and specification. | Complex valve parts, copper thermal features and multi-face components. |
| CNC turning | Standard machining tolerance down to ±0.008 mm, subject to part geometry and specification. | Bushings, sleeves, stems and turned cylindrical parts. |
| Swiss screw machining | Standard machining tolerance down to ±0.003 mm for suitable small components. | Small pins, shafts and precision bronze or copper parts. |
Final tolerances, achievable finishes and inspection methods are confirmed from the component drawing and agreed quality requirements.
Quality & material integrity
Verify density and dimensions with the right evidence.
Where internal integrity is critical, the manufacturing route and acceptance criteria should be defined together. Forged billet may be specified for suitable applications; cast components can be assessed using agreed inspection requirements. Material identity and dimensional conformity are documented to the project plan.
Material traceability
EN 10204 3.1 material certification and heat-lot linkage can be supplied as specified. PMI by XRF or OES is available for material verification.
Dimensional inspection
CMM inspection data books and dimensional reports can record critical features, fits and drawing characteristics for review.
Non-destructive testing
PT, MT and UT inspection, alongside pressure testing where relevant, can be arranged against the agreed acceptance criteria.
Corrosion-related finishes
Finish and corrosion verification requirements are reviewed for the specified alloy and service environment, rather than assumed across all material grades.
Start with the drawing and service conditions
Need a bronze bushing, seawater valve part or precision copper busbar?
Share the drawing, alloy requirement, quantity and operating environment. Our team can review the manufacturing route, key tolerances and documentation needs for your GCC project.

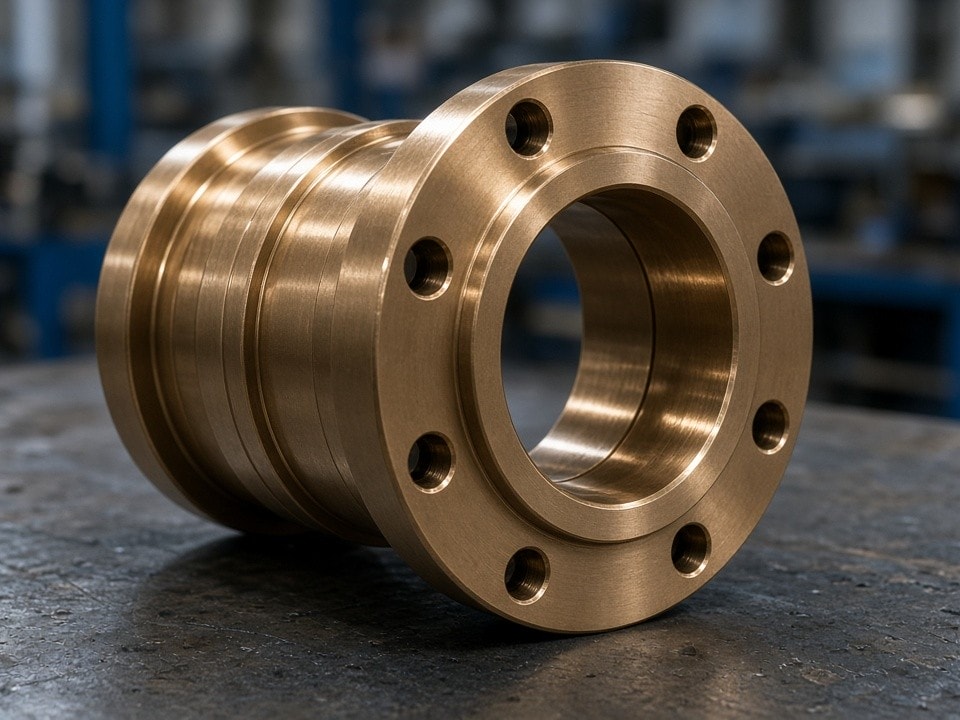

Precision Aluminum Bronze (C95400/C63000) Machining Services for GCC Industry
PartsMake provides high-precision CNC machining for Aluminum Bronze C95400 and C63000 components. Certified quality for desalination, marine, and offshore applications.
View details →

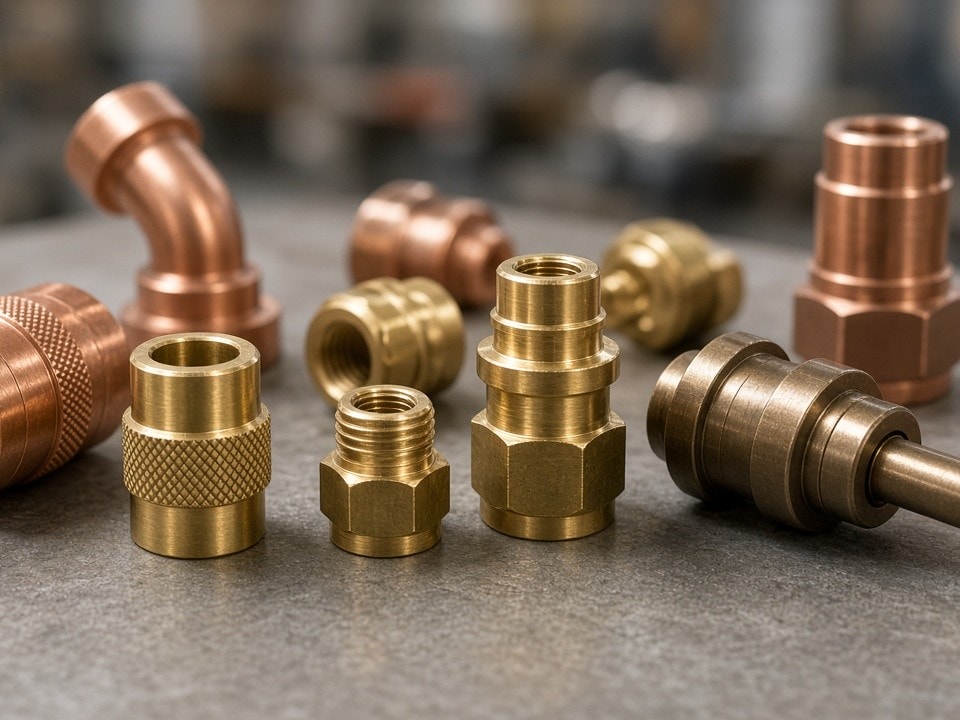

Phosphor Bronze & Brass Precision Parts | PartsMake
